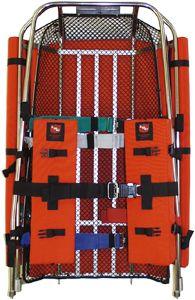

The #406 Medevac IIA is the break-apart version of the #404 Medevac II.  LSC’s #406 is the break-apart litter only; the #406-F includes a factory installed #103 Flotation Kit.  Couplers lock both the top tubes and the bottom skid tubes firmly together.  Both sets of couplers are cast or machined from solid stainless steel.  The top tube couplers are screw-type with self-aligning pins, while the bottom skid tubes are attached with hook and pin-type couplers This coupler system is the strongest in use on any stretcher today.  When assembled, the Medevac IIA is as robust as the rigid Medevac II (having been proof loaded to 2,600 lbs. with no yield). Click photos for larger images.

• Weight:  #406 @ 34 lbs. / #406-F @ 45 lbs.

• Stowed Dimensions:  24" W x 10" D x 43" L

• Assembled Dimensions:  24" W x  7" D x 84" L

• Available in TITANIUM.
